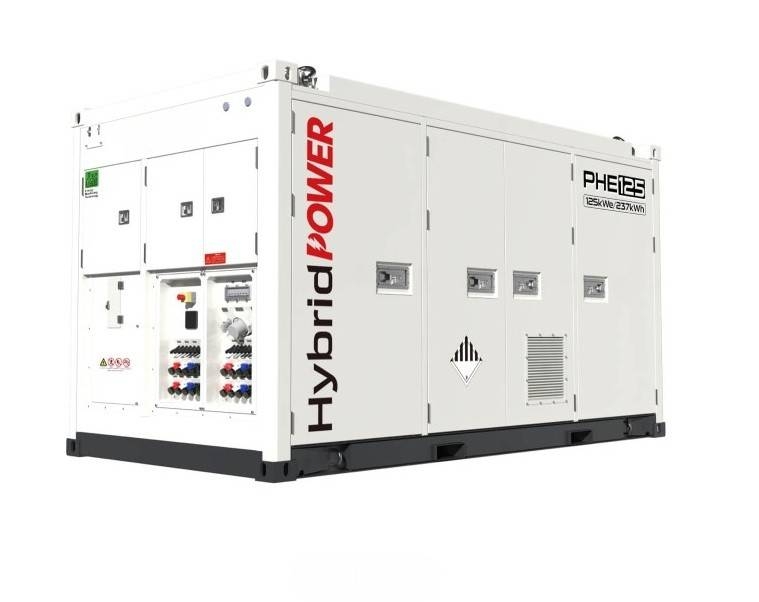

PHE125 Hybrid Energy System - 125 kVA - 237 kWh

Kenmerken

Bouwjaar

2025

Categorie

Generatoren

Locatie

Dordrecht

Beschrijving

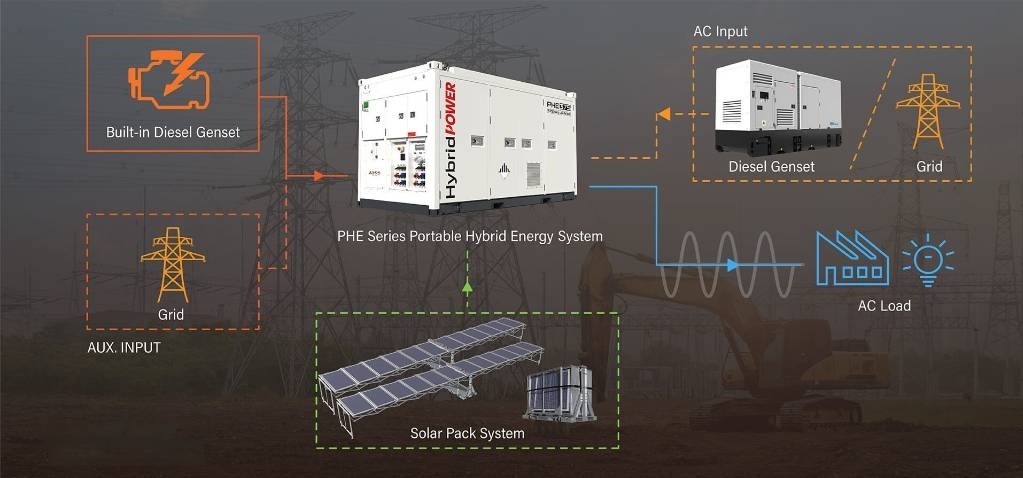

Portable Hybrid System - Portable Energy Storage System - Solar System - Battery Energy Storage Systems The PHE125 is 125 kVA and 237 kWh. - Continiuous output power: kVA/kW: 125/125 - Max. output power: kVA/kW: 138/138 - 3 Phase - Noise level (Battery mode) dBA@7m: 55 - Noise level (Hybrid mode) dBA@7m: 60 DC/AC System: - Rated power: kVA/kW: 2x130 - Output voltage: AC V 380/400/415 - 3P AC Charger kVA/kW: 1x60 - Parallel / On-Grid Function PV System: - Rated power kWp: 1x50 - Input voltage: DC V 150-750 Battery System: - LiFePO4 / 237 kWh - Rated voltage: DC V 832 - Cooling system: Liquid-cooled These systems can store energy from various sources, including Solar, Wind, Generator electricity, and the City grid, and discharge it when needed, providing high-quality electric energy.

Specificaties

Voorraad nummer

DPX-20051

Motorvermogen

45 kW (61,2 pk)

Generatoroutput

125 kVA

Motorfabrikant

Cummins

Frequency

50 Hertz

Voltage

400 V

Watertankvolume

300 l

Totaalgewicht (GVW)

4.000 kg

Transportdimensions

2900 x 1300 x 1600 mm

Toebehoren

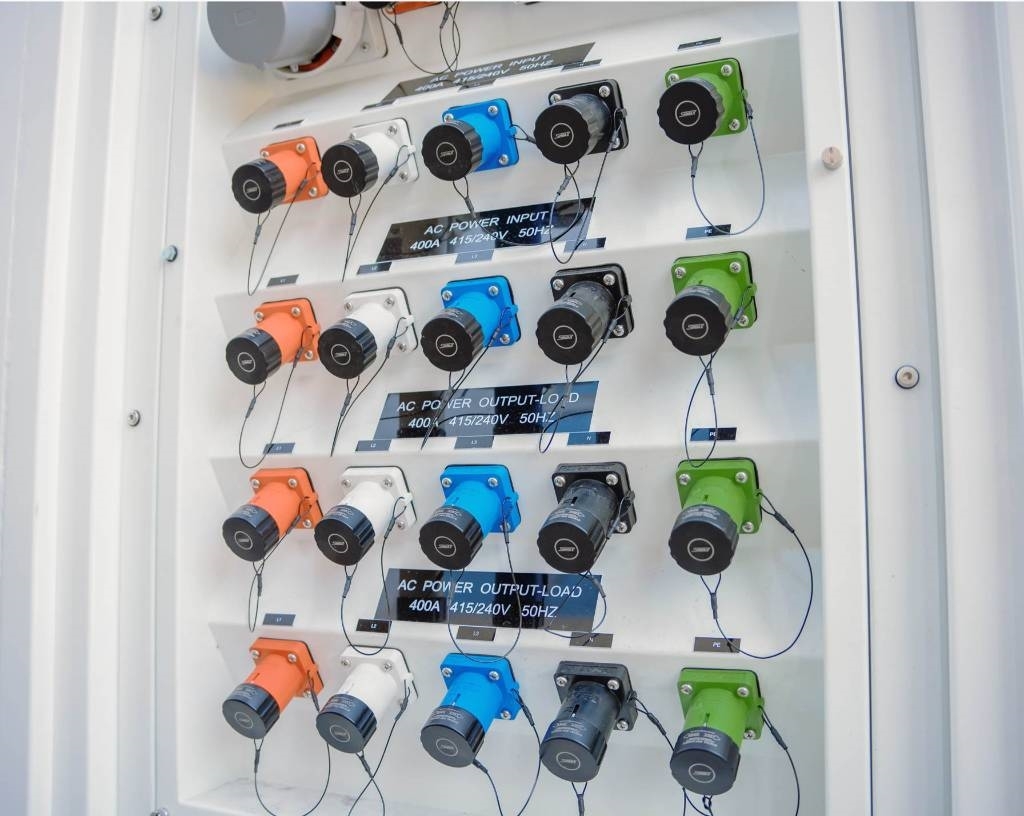

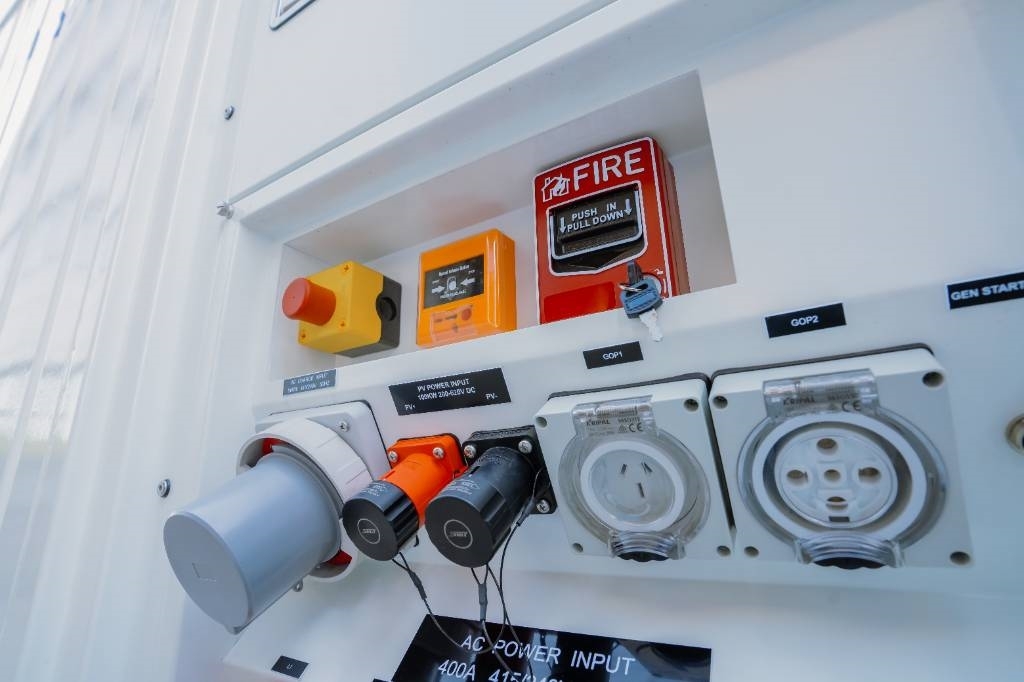

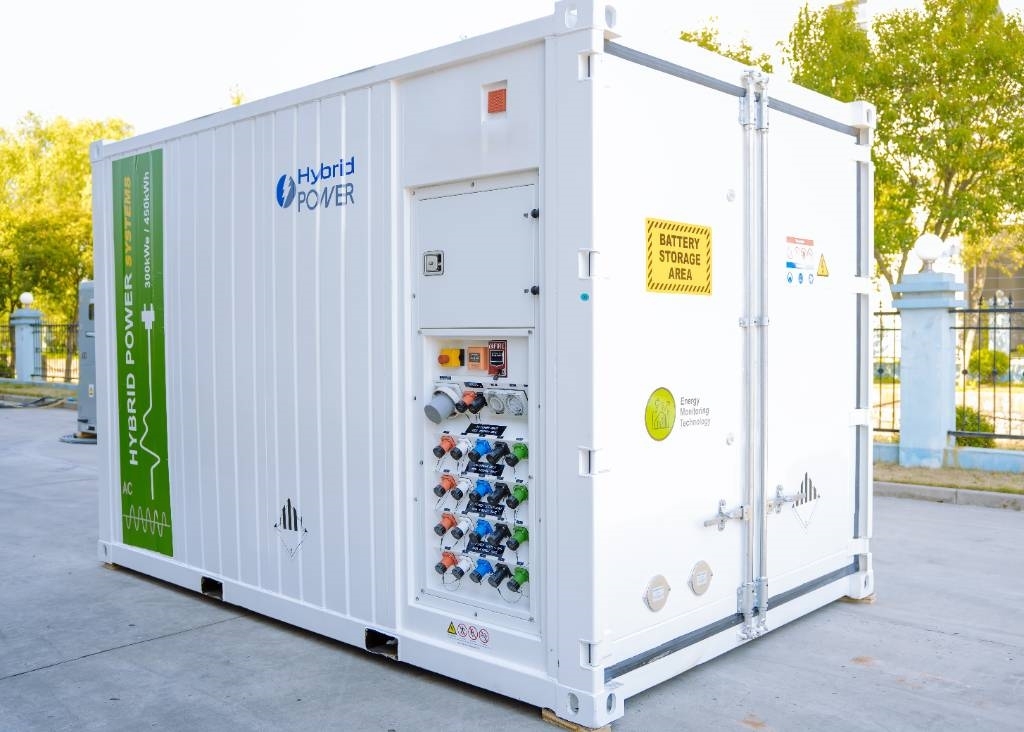

Input: AC socket: 3P/5W, 1x125kW - DC socket: 1x50kW - AC socket: 3P, 1x60kW Output: AC socket: 3P/5W, 1x125kW
