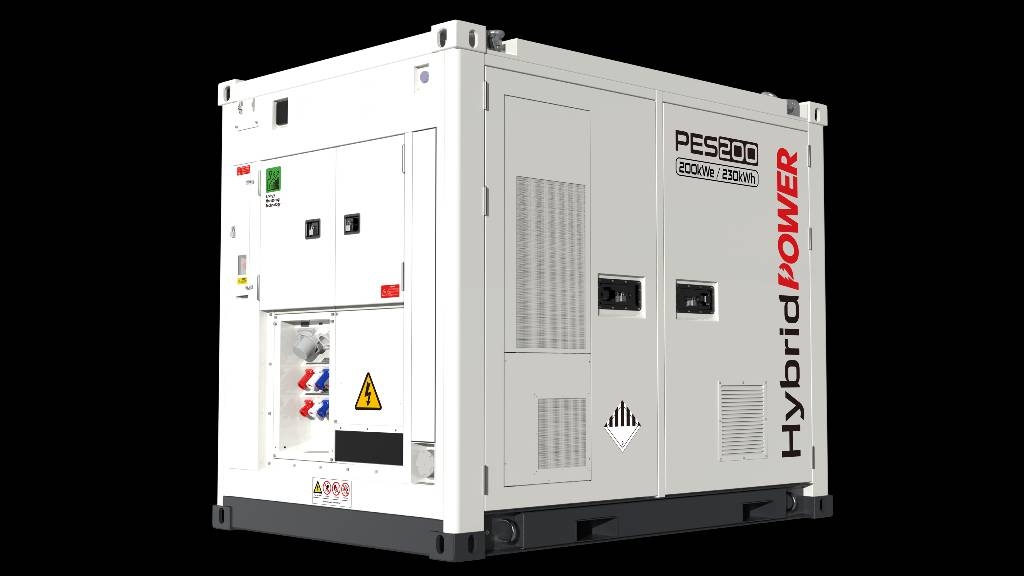

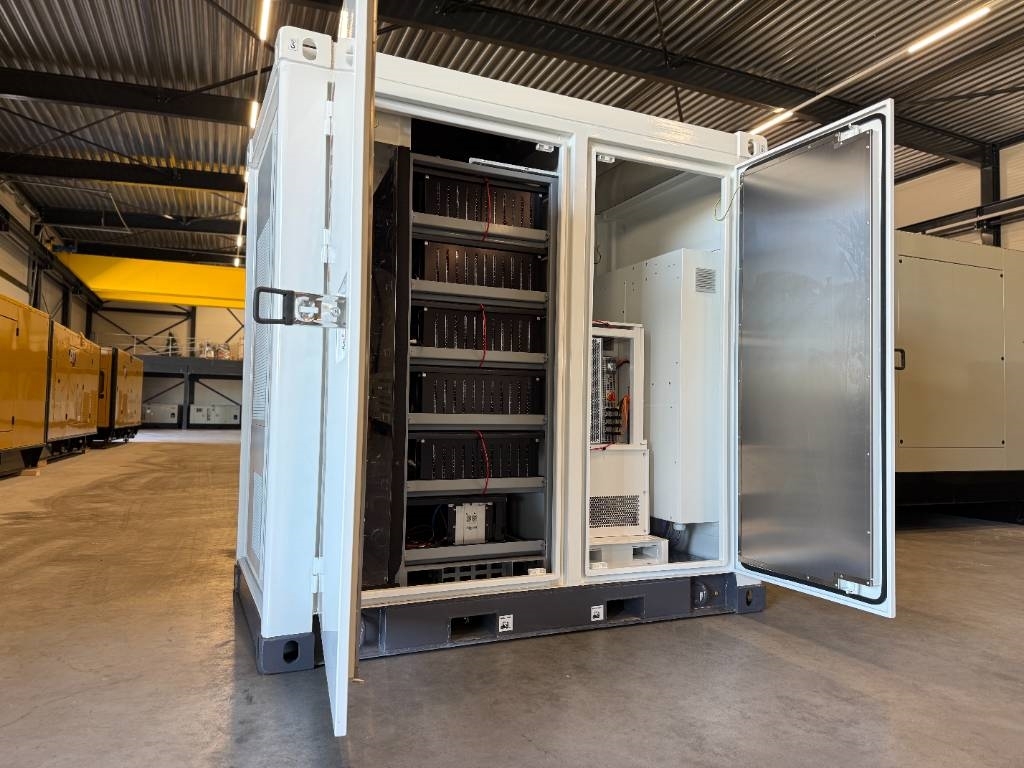

PES200 Hybrid Energy Sysyem - 260 kVA - 230.4 kWh

Kenmerken

Bouwjaar

2025

Categorie

Generatoren

Locatie

Dordrecht

Beschrijving

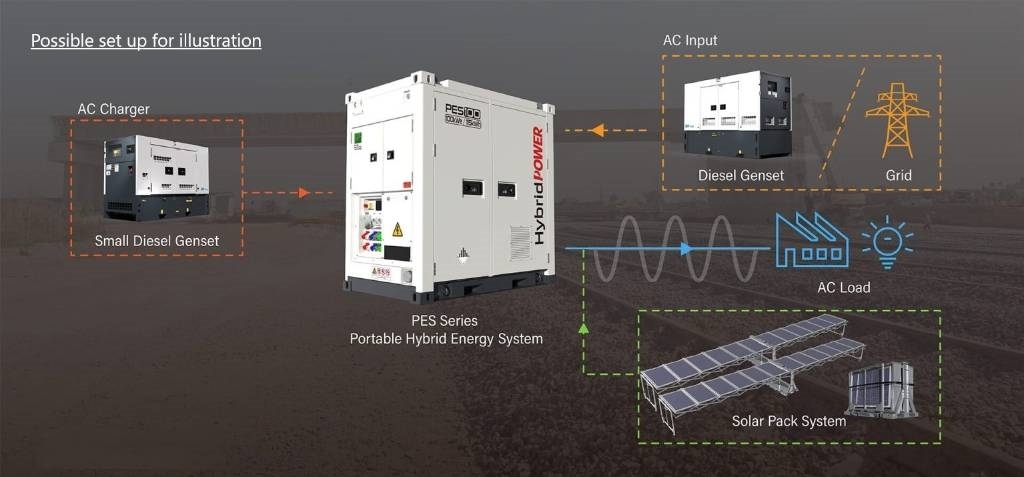

Portable Hybrid System - Portable Energy Storage System - Solar System - Battery Energy Storage Systems The PES500 is 260 kVA and 230.4 kWh. - Continiuous chargeduration* (AC Charger): Unlimited - Max. charge power: kW 2x30 - Automatic control according to changes in battery temperature. - 3 Phase - Noise level dBA@7m: 58 DC/AC System: - Rated power: 260 kVA/ 260kW - Output voltage: AC V 380/400/415 - Stanby AC charger power: kW 2x30 - Parallel / On Grid function PV System: - Rated power kWp: 60 - Input voltage: DC V 200-1000 Battery System: - LiFePO4 / 230.4 kWh - Rated voltage: DC V 768 - Cooling system: Air-cooled These systems can store energy from various sources, including Solar, Wind, Generator electricity, and the City grid, and discharge it when needed, providing high-quality electric energy.

Specificaties

Voorraad nummer

DPX-20042

Engine

Battery System: LIFePO4

Motorvermogen

260 kW (354 pk)

Generatoroutput

260 kVA

Frequency

50 Hertz

Voltage

400 V

Totaalgewicht (GVW)

5.787 kg

Transportdimensions

2780 x 1850 x 2280 mm

Toebehoren

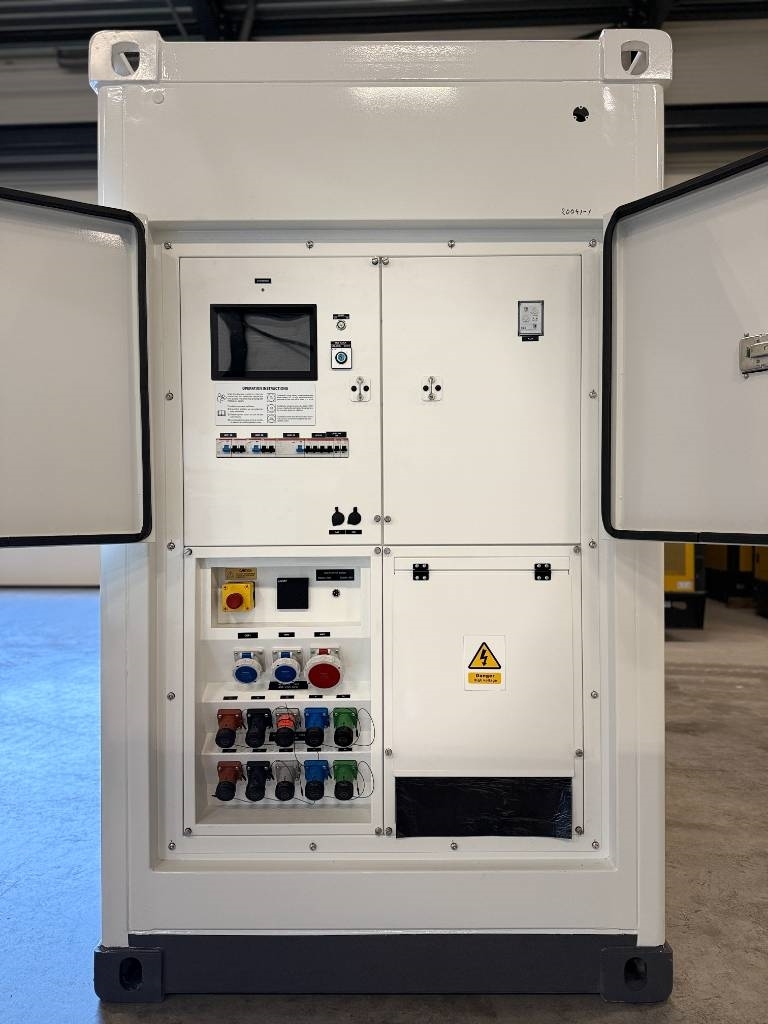

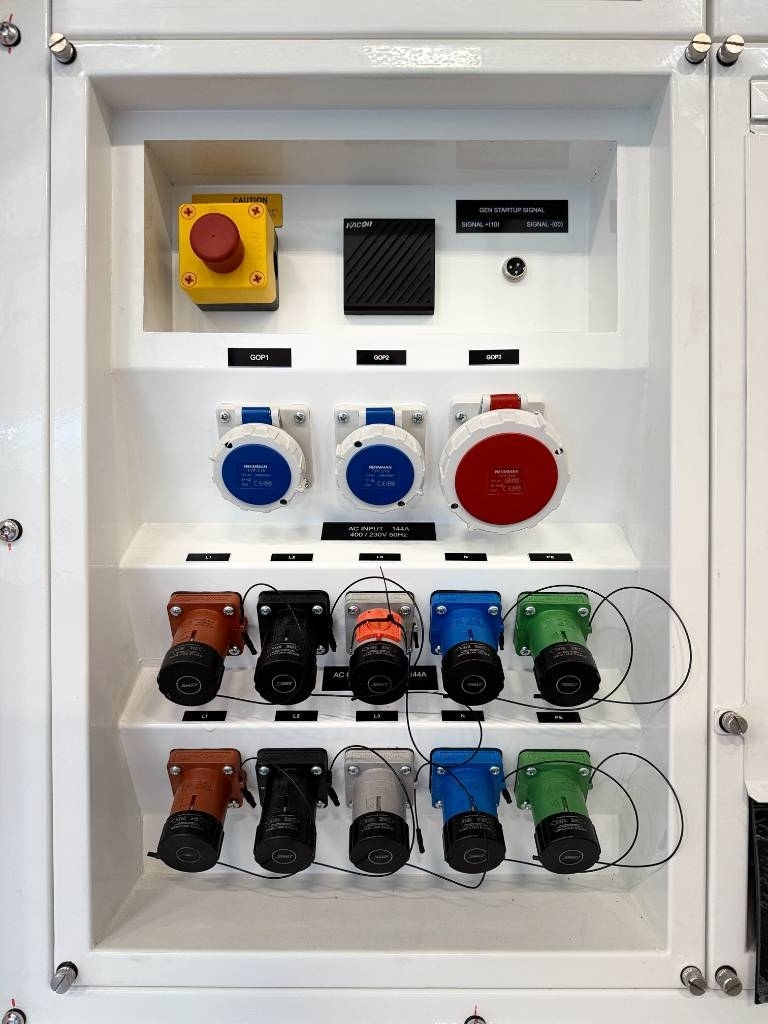

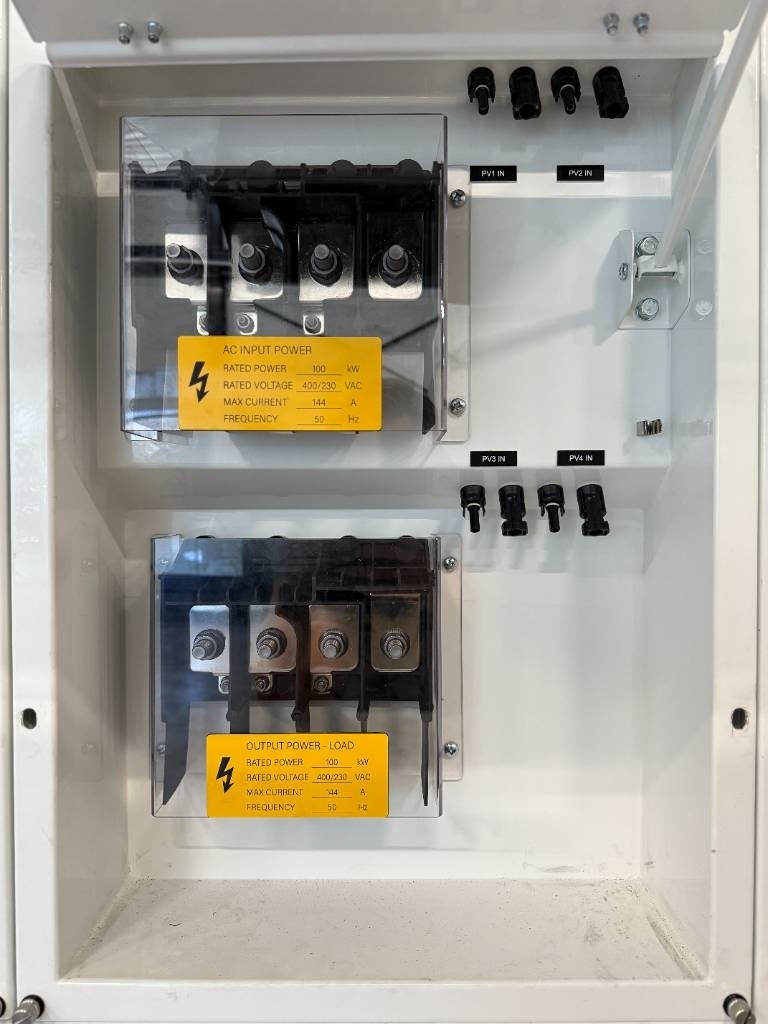

Wiring port: L1, L2, L3, N, PE Power Input: - AC socket: 3P/5W, 1x200kW, 2x30kW - AC copper: 3P/4W, 200kW - DC socket: 60kW Power Output: - AC socket: 3P/5W, 1x200kW - AC socket: 1P, 1x16A; 3P, 1x32A - AC copper: 3P/4W, 200kW
